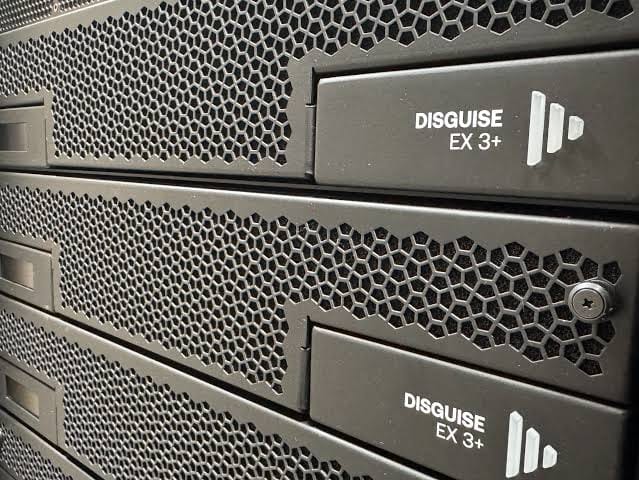

The DISGUISE EX3+ media server features three 4K video outputs and up to 2x 4K DCI or 8x Full-HD video capture inputs. Ideally suited for mid-scale installations and shows delivering impactful content via LED walls or projectors at scale, also requiring a physical video input to enable 4K cameras to be used for audience interaction.
Features
| Video output 1x DisplayPort 1.4 (GUI) & 3x DisplayPort 1.4 (Outputs) |
| Video input Up to 2x 4K DCI inputs or 8x Full-HD inputs via: 1x 12G or 4x 3G SDI (HD-BNC connectors) & 1x HDMI 2.0 |
| High-speed network 2x 100Gb/sec (QSFP28) |
| CPU AMD EPYC 2.45Ghz |
| GPU NVIDIA RTX 4000 Ada |
| Motherboard PCIe 5.0 |
| Storage 3.84TB Removable NVMe SSD |
